Key Factors for Injection Molding Machine Selection

Project Requirements

When I start a new project, I always look at the main requirements first. I check the part size, shape, and weight. I ask myself what material fits best for the job. I also think about how many parts I need to make. These details help me pick the right plastic injection molding machine. Here’s my quick checklist for project requirements:

1. Define part dimensions and weight.

2. Choose the right material for strength and cost.

3. Estimate production volume.

4. Decide if I need a quick mold change mechanism for faster setup.

5. Make sure the machine matches future needs.

If I ignore these steps, I risk poor part quality and wasted money. I always focus on matching the injection molding machine to my project’s requirements.

Mold Design Influence

Mold design changes everything. Simple molds need basic machines. Complex molds with undercuts or thin walls need advanced plastic injection molding machines. I look at the number of cavities and the cooling system. If the mold has slides or family cavities, I need machines with special capabilities. Here’s a table that helps me compare:

I always match the mold design to the machine’s capabilities. This keeps my molding process smooth and helps me deliver high-quality parts.

Shot Size and Capacity

Shot size matters a lot. I calculate the total volume of the part, runner, and sprue. I add a little extra for shrinkage. I make sure the plastic injection molding machine can handle the shot size. For general plastics, I use 20-80% of the machine’s shot capacity. For engineering materials, I stick to 30-50%. I check the material density and adjust my numbers. If I get this wrong, I see defects and bad part quality.

Clamp Tonnage

Clamp tonnage keeps the mold closed during the molding process. I multiply the part’s surface area by a factor based on the material. For easy-flow plastics, I use 2.5 times the area. For tough materials, I use 4 times. I always add a safety margin. For example, a 42 square inch part needs about 120 tons of force. If I choose too little, the mold opens and the part fails. If I choose too much, I damage the mold.

Platen and Ejector Stroke

Platen size and ejector stroke affect mold compatibility. I check if the mold fits between the tie bars. I look at the ejector stroke to make sure the part comes out clean. Long ejector strokes need guided systems to avoid wear. I check the guide pins and bushings. If I skip this, I see bent pins and stuck parts. I always match the mold and machine for smooth ejection and better part quality.

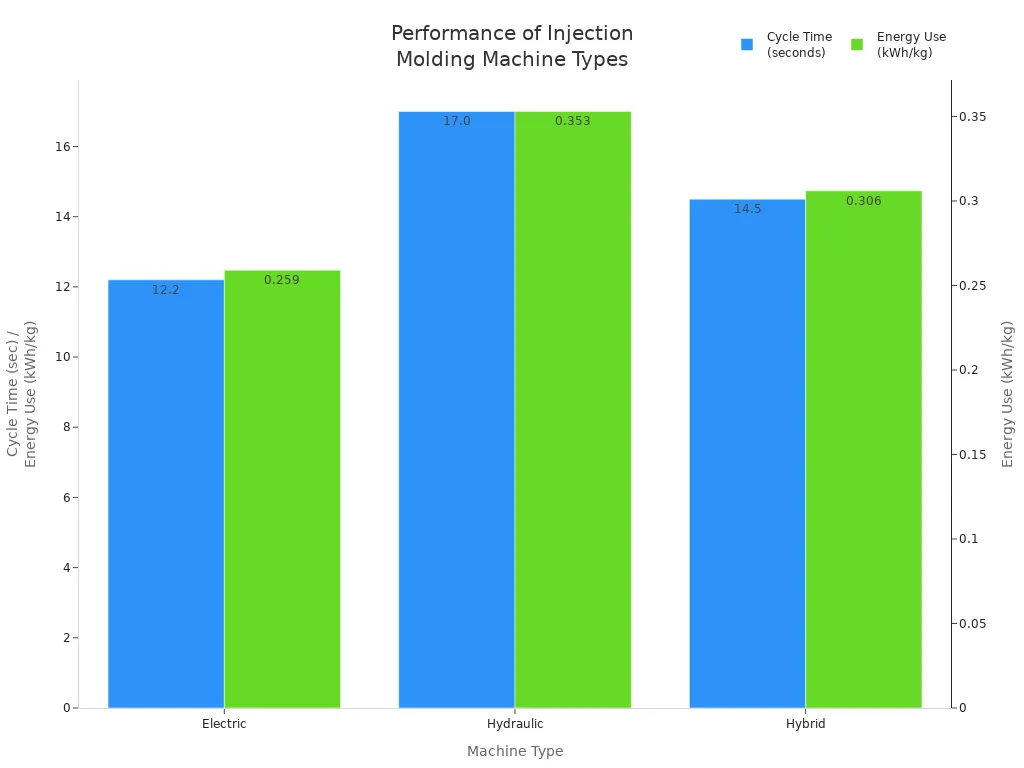

Types of Plastic Injection Molding Machines

Picking the right plastic injection molding machine is important. The type of machine changes how fast you work, how much you spend, and how good your parts are. I always check the machine type first. Here is a table that shows how each type is different:

Hydraulic Machines

Hydraulic plastic injection molding machines are strong and tough. They work well for big parts with thick walls. I use them for cars, packaging, and medical items. These machines give lots of clamp force. They are good for hard jobs. But they use more energy and need more care. Oil leaks can make things messy. If you want strong power and high pressure, hydraulic machines are a good pick.

Electric Machines

Electric plastic injection molding machines are fast and save energy. They use servo motors to move. I see quick cycles and less noise. They are cleaner than hydraulic machines. Electric machines can save a lot of energy. They cost more at first, but you save money later. I like them for jobs that need careful temperature control. They are best for small or medium parts.

Hybrid Machines

Hybrid plastic injection molding machines mix electric and hydraulic features. They give strong clamp force and save energy. These machines are good for making lots of parts. I use them for cars and medical items. They work fast and can do many things. But they cost more and need special care. If you want both power and energy savings, hybrid machines are a smart choice.

Desktop Injection Molding Machine

Desktop injection molding machines are small and easy to move. They fit on a table and help you test ideas fast. I like them because they are cheap. They work for simple parts and short jobs. Desktop injection molding machine models have basic features. They are not as strong as big machines. If you want to learn or start small, desktop injection molding machines are a good option.

Selection Steps for Injection Molding Machine

Define Product and Material

I always start my selection by focusing on the product and the material. This step shapes every other decision. I ask myself: What will the part do? How strong does it need to be? Will it face heat, chemicals, or heavy use? I look at the product’s size, shape, and how it must look. I check if the part needs to last a long time or just a short while.

Here’s my step-by-step approach:

1. I decide if I need thermoplastics or thermosets. Thermoplastics can be recycled. Thermosets offer more heat resistance.

2. I check the material’s strength, impact resistance, and heat tolerance. I use Material Data Sheets to compare options.

3. I balance the material’s cost with the project’s needs. I never pick a material just because it’s cheap.

4. I refine the product design for easy molding. I set the right wall thickness, draft angles, and avoid undercuts.

5. I work with manufacturers early. Their advice helps me avoid mistakes in the molding process.

Tip: Always match the material to the product’s function. For example, I use PEEK or Nylon for strong parts. I pick PP for flexible parts.

Calculate Clamp Force

Getting clamp force right is key for part quality. If I get it wrong, I see flash, short shots, or even mold damage. I use a simple formula to make sure I pick the right injection molding machine:

1. I measure the total projected area of the part and runner.

2. I find the cavity pressure. This depends on the material, wall thickness, and gate size.

3. I use this formula:
   Clamp Force (tons) = Cavity Pressure (kg/cm²) × Projected Area (cm²) × Safety Factor (1.3)

4. I always add a safety margin. I want to avoid any risk of the mold opening during the molding process.

Note: I never pick a machine with clamp force lower than my calculation. I always round up to the next standard size.

Match Injection Unit

The injection unit must fit both the material and the product. I check four main factors before making my selection:

If I ignore these, I risk poor part quality or wasted material. I always double-check the numbers.

Check Mold Compatibility

I never skip checking if the mold fits the injection molding machine. This step saves me from costly mistakes. Here’s my checklist for mold compatibility:

• The machine must have enough clamping force for the mold size and material.

• The injection capacity must match the mold’s shot volume.

• The mold must fit between the machine’s platens and tie bars.

• The machine must reach the right injection pressure and speed for the part.

Pro Tip: I always look for versatile mold compatibility. This lets me use different molds on the same machine, which saves money and time.

Plan for Future Needs

I always think ahead when making my selection. I choose a machine that can handle more than just my current project. If my production grows, I want my machine to keep up. This strategy saves me from buying new machines too soon.

I ask myself:

• Will I need to make more parts next year?

• Will I use new materials or molds in the future?

• Can this machine adapt to new projects?

If I plan for growth, I avoid limits and keep my business flexible. I want my investment to last and support high-quality parts for years.

Common Mistakes in Machine Selection

Ignoring Technical Specs

Many people forget to check technical details when choosing a machine. This is a big mistake in machine selection. If I skip specs, I might get bad parts and lose money. Poor maintenance and missed checks cause big problems. Here are some issues I have seen:

• Product specs change, and I get parts that do not work.

• Waste grows, and my costs get higher.

• My brand gets hurt because customers complain.

• Small problems become big breakdowns.

• Machines break faster, and repairs cost more.

• Downtime lowers my revenue and slows my team.

• Corrosion and hidden damage make repairs expensive.

I always look for tiny contamination. It can ruin how products work and wear out machines. If I skip cleaning, I see more warranty claims and returns. My company can even get into legal trouble. I do regular checks and keep things clean. This keeps my products strong and my machines working longer.

Overlooking Energy Efficiency

Energy costs take up a lot of my budget. If I ignore energy-saving features, I lose money every month. I pick machines with servo motors and variable speed pumps. These cut energy use and help me save. All-electric machines only use power when needed. I see up to 70% less energy use than old hydraulic presses. This means lower bills and fewer repairs. My clients get cheaper parts and faster delivery. I also tell people my business is green and energy-smart. This helps me get more customers and work better.

• Energy use is most of my production costs.

• Lower energy use means I make more profit.

• Efficient machines run faster and need less fixing.

• I spend less on cooling and maintenance.

Neglecting Scalability

I always plan for growth. If I pick a machine that cannot grow, I limit my business. I ask if the machine can handle bigger orders or new materials. If I ignore scalability, I buy new machines too soon. This wastes money and slows me down. I look for machines that can use new molds and projects. This keeps my business flexible and ready for change.

Checklist for Selecting Injection Molding Machine

Quick Review Points

I use a checklist when I pick an injection molding machine. This helps me avoid mistakes and keeps my work going well. Here is what I check each time:

1. Material Selection: I decide if I need one or more materials. The material affects the machine I need and how the part turns out.

2. Product Size: I measure the biggest part size. This tells me the smallest machine I can use.

3. Production Volume: I figure out how many parts I want to make. If I need a lot, I pick a machine that works fast and does not break down.

4. Machine Type: I choose from hydraulic, electric, or hybrid. I think about what each type offers, how fast it works, and how much it costs.

5. Automation Level: I decide how much of the work should be automatic. More automation can lower labor costs and make parts more the same.

6. Mold Fit: I check the clamping unit and platen size. The mold must fit right for the machine to work well.

7. Clamping Force: I figure out how much force is needed to keep the mold closed. I use the part’s area and the pressure from the material.

8. Special Mold Features: I look for things like multi-cavity molds, undercuts, or side actions. These may need special machine parts.

Tip: I always check where the gate is, where the ejector pins go, and where the part splits. Doing this early stops problems and saves money later.

Final Decision Guide

Before I pick my machine, I look closer at a few things. I want to make sure I spend my money well. Here is my guide:

• Company Experience: I see if the supplier has done jobs like mine before. If they have, I feel better about working with them.

• Technical Expertise: I look for skills like multi-material molding or fast prototyping. These skills help me get better parts.

• Capacity and Equipment: I check if the company can handle my order size. I ask about their machines and what they can do.

• Certifications and Quality Control: I want proof they check quality. Certifications show they follow rules and care about good work.

• Location and Support: I like suppliers who are close by. It is easier to talk and get help fast.

• Pricing and Value: I compare prices, but I also look at what I get for my money. Cheap machines can cost more later if they break.

• Client Feedback: I read reviews and ask for what other clients say. Good feedback means I can trust their service.

I always write down what I need and talk to my supplier. Clear plans and talking openly help me get the best injection molding machine for my job.

I use a simple plan to pick the best injection molding machine. First, I figure out what my project needs. Next, I pick the right machine type for my job. Then, I find out how much clamp tonnage I need. After that, I make sure the injection unit matches my project. I also check if the mold fits the machine. I look for machines that save energy. I want machines with features that help make parts precise. I check if the company gives good support and fixes machines fast. I compare how much everything costs. Last, I see if the supplier knows a lot about injection molding.

I always use my checklist and ask experts for help on hard jobs. Their advice helps me do well in manufacturing every time.

FAQ

What is the most important factor when choosing an injection molding machine?

I always look at the part size first. If the machine cannot handle my part, nothing else matters. I check shot size, clamp force, and mold fit before making any decision.

How do I know if my mold will fit the machine?

I measure the mold’s width and height. I compare these numbers to the machine’s platen size and tie bar spacing. If the mold fits, I move forward. If not, I pick a bigger machine.

Tip: Always ask the supplier for a mold compatibility chart.

Can I use one machine for different materials?

Yes, I can. I choose a machine with adjustable temperature and pressure controls. I check if the screw and barrel work for all my materials. If I plan ahead, I save money and avoid buying extra machines.

How do I avoid buying a machine that is too small or too big?

I list my part sizes and production needs. I use a table to compare machine specs:

I pick the model that matches my needs.
