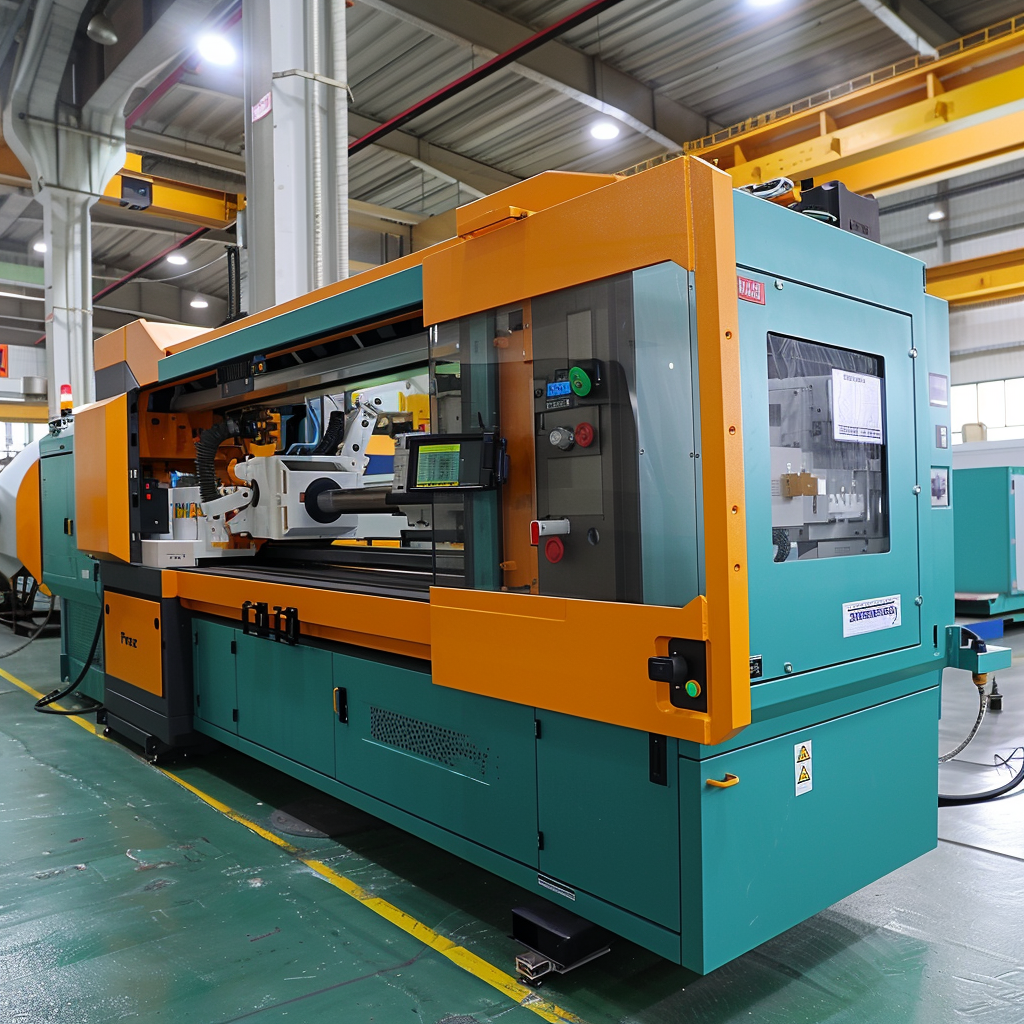

This machine is a fully automatic injection blow molding machine. It is capable of processing PP, PS, PE, SAN, PMMA, PC, PETG, PEN, and other thermoplastic materials. It has wide applications in pharmaceuticals, health care products, foods, beverages, cosmetics, etc. Single mold multi-cavity for automatic continuous production technology with the use of three horizontal station rotary device, hot runner system, and multi-stage injection molding system. Injection, blowing, and forming dies that work in three stations simultaneously for high-efficiency and energy-conserving operation. Ensure smoothness of the product bottle with no wastes and high precisions for the inner and outer diameters of the bottle neck and thread. This series is the standard equipment for the 21st-century modern enterprise environment-friendly production.
Core Highlights of Huili Injection Blow Molding Machine
Fully Automatic Operation for High Efficiency
This injection blow molding machine features fully automatic operation, which saves significant time and labor costs for production lines. It realizes continuous and stable production without frequent manual intervention, greatly improving the overall production efficiency of plastic bottles.
Multi-Material Compatibility for Versatile Applications
The equipment is capable of processing a wide range of thermoplastic materials including PE, PP, HDPE, LDPE, PS, SAN, PMMA, PC, PETG and PEN. This versatility makes it ideal for manufacturing bottles in pharmaceuticals, healthcare, food, beverage and cosmetics industries.
High-Speed Tie Bar Patent & Three-Station Design
Equipped with leading high-speed tie bar structure, the machine shortens the production cycle effectively. Its three horizontal station rotary device enables injection, blowing and forming processes to work simultaneously, achieving energy-conserving and high-efficiency operation.
Medical-Grade Stainless Steel & Precision Performance
The fuselage adopts medical stainless steel standard with exquisite cover design. It ensures the smoothness of product bottles with no wastes, and guarantees high precision for the inner and outer diameters of bottle necks and threads.
Product Overview
Huili injection blow molding machine is a state-of-the-art fully automatic equipment designed for modern plastic bottle production. It integrates hot runner system and multi-stage injection molding system, adopting single mold multi-cavity technology to meet the large-scale production needs of enterprises.
This machine is specially optimized for PE/PP/HDPE/LDPE plastic bottles, with a suitable bottle capacity range of 3–800ml, maximum bottle height ≤180mm and maximum bottle diameter ≤80mm. Its dry cycle can be as short as 4 seconds, which is far ahead of similar products in the market.
As a standard equipment for 21st-century modern enterprise environment-friendly production, the machine achieves zero waste discharge during the production process, which is in line with the global environmental protection production trend. It is widely recognized by customers in pharmaceutical and food industries that have strict requirements for product quality and production environmental protection.
Technical Specifications
Item | Sub-item | Unit | IBM35 Parameter |
Injection system | Screw Diameter | mm | 40 |
Max. Theoretical Injection Capacity | g | 176 | |
Heating Capacity | KW | 7.2 | |
No. of Heating Area | Qty | 3 | |
Clamping & blowing system | Clamping Force of Injection | kn | 350 |
Clamping Force of Blowing | kn | 40 | |
Opening Stroke of Mold Platen | mm | 120 | |
Max. Platen Size (L×W) | mm | 420×340 | |
Min. Mold Thickness (H) | mm | 180 | |
Heating Capacity of Mould | KW | 2.8 | |
Product dimension range | Suitable Bottle Range | ml | 3–800 |
Max. Bottle Height | mm | ≤180 | |
Max. Bottle Dia. | mm | ≤80 | |
Dry Cycle | s | 4 | |
Hydraulic driving system | Motor Power | KW | 11/15 |
Hydraulic Pressure | Mpa | 14 | |
Pneumatic system | Min. Air Pressure | Mpa | ≥0.8 |
Discharge Rate of Compressed Air | M³/mm | ≥0.7 | |
Cooling system | Water Flowage | M³/h | 3 |
Total Rated Power with Mold Heating | KW | 21/25 | |
Machine information | Dimension (L×W×H) | M | 3.1×1.2×2.2 |
Machine Weight | Ton | 4.0 |
Why Choose Us
Leading Technology & Stable Quality
We have independent research and development capabilities for core technologies such as high-speed tie bar structure. Each injection blow molding machine undergoes strict quality testing before leaving the factory to ensure stable operation in long-term production.
Environmental-Friendly & Cost-Saving
The machine realizes zero waste production, which reduces raw material costs for enterprises. Its energy-saving design also cuts down the electricity consumption during operation, bringing higher economic benefits to customers.
Customizable Solutions
We can provide customized mold design and production process optimization according to the specific bottle size and material requirements of customers, meeting the personalized production needs of different industries.
After-Sales Service & Warranty
Professional Installation & Commissioning
Our technical team will send engineers to the customer’s site for free installation and commissioning of the plastic bottles injection blow molding machine. We will also provide on-site training for the operation and maintenance personnel.
Comprehensive Warranty Service
The machine enjoys a 12-month warranty period from the date of installation and acceptance. During the warranty period, we will provide free replacement of damaged parts caused by non-human factors.
Lifelong Technical Support
We offer lifelong technical support for all our customers. Our after-sales team responds to customer inquiries within 24 hours and provides remote or on-site solutions to ensure the normal operation of the equipment.
FAQ
What materials can the machine process?
It is capable of processing a wide range of thermoplastic materials including PP, PS, PE, SAN, PMMA, PC, PETG and PEN.
What is the advantage of the machine’s three-station design?
Its three horizontal station rotary device enables injection, blowing and forming processes to work simultaneously, achieving energy-conserving and high-efficiency operation.
What is the dry cycle time of the machine?
Its dry cycle can be as short as 4 seconds, which is far ahead of similar products in the market.
Does the machine achieve environmental-friendly production?
Yes. It realizes zero waste discharge during the production process, meeting the environmental protection production requirements of modern enterprises.
What is the warranty period of the machine?
The machine enjoys a 12-month warranty period from the date of installation and acceptance, with free replacement of non-human damaged parts.
