The machine is equipped with an imported advanced computer system, which supports multi-language switching including Chinese, English, Russian, Spanish, French and Arabic, meeting the operation needs of users in different regions of the world. It can store 100 sets of mold parameters, which is convenient for enterprises to carry out the production of multiple varieties and specifications of products, and greatly shortens the mold changing time. The advanced clamping structure and injection parts ensure the stability of the mold during the injection molding process, and the precision hydraulic system and circuit design realize the accurate control of the injection process, making the product size more accurate and the appearance more perfect.
Core Highlights of Servo Plastic Injection Moulding Machine
Adopts high-precision servo control system for energy saving and high efficiency
Suitable for the production of various precision small parts such as PET preforms and pipe fittings
Supports multi-language operation interface and 100 sets of mold parameter storage
Has stable clamping performance and fast injection response speed
Provides customized after-sales service and global technical support
Product Overview

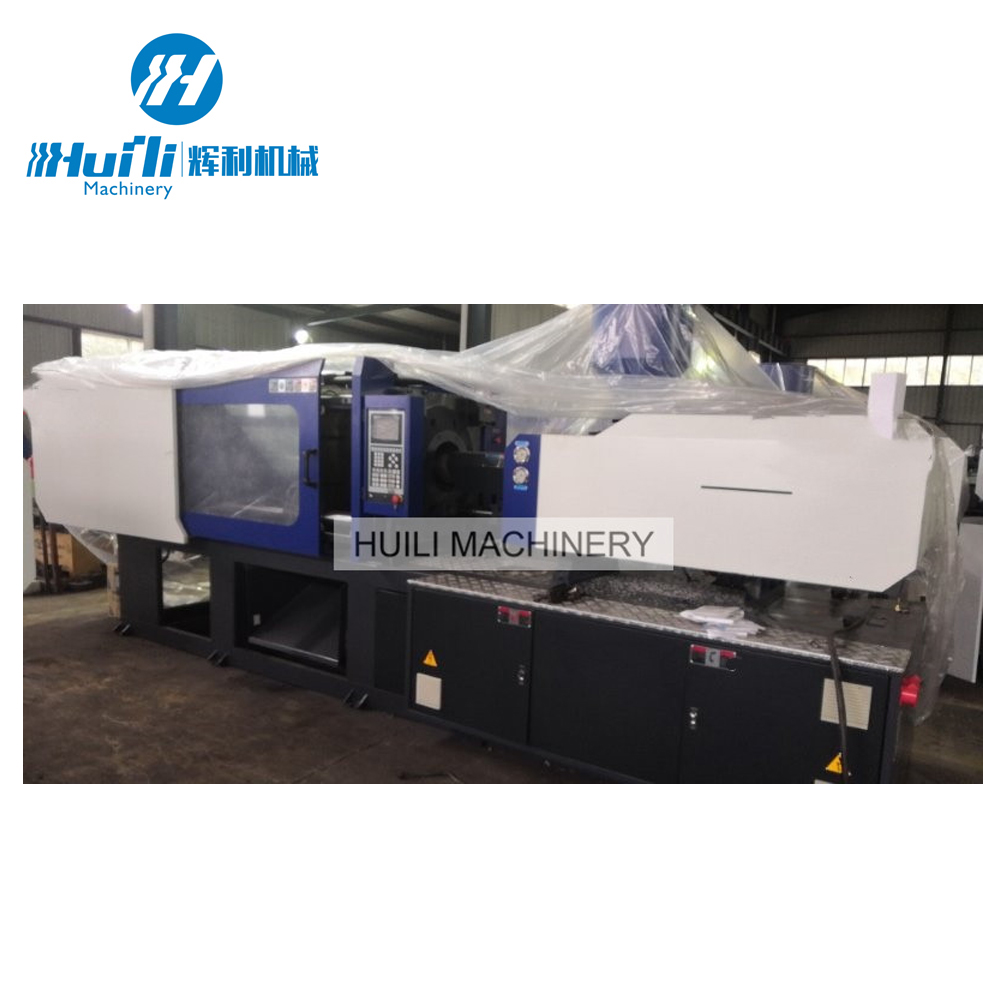

The HL-2600 servo plastic injection moulding machine launched by Huili Machinery is a high-performance injection molding equipment integrating servo control technology, precision hydraulic technology and intelligent management system. Different from the traditional injection molding machine, this servo injection molding machine adopts advanced servo motor drive system, which can realize precise control of injection speed, pressure and position, and is especially suitable for the production of various precision small plastic parts such as PET preforms, pipe fittings, daily necessities accessories, etc.
In addition, the machine has three operation modes: manual, semi-automatic and fully automatic, which can be flexibly selected according to the production needs. The automatic movement monitoring, alarm and fault diagnosis function can monitor the operation status of the equipment in real time, find and solve problems in time, and avoid the loss caused by equipment failure. The unique slope setting function can set the start and stop of each movement link, ensuring the smooth operation of the equipment and improving the production efficiency.
Technical Specifications
Index | Unit | A | B | C |
Model | - | HL-2600 | HL-2600 | HL-2600 |
INJECTION UNIT | ||||
Screw diameter | mm | 50 | 55 | 60 |
Shot size (theoretical) | Cm³ | 581 | 712 | 847 |
Shot weight | g | 553 | 669 | 796 |
Injection pressure | Mpa | 226 | 157 | 190 |
Injection rate | g/s | 30.4 | 37.9 | 46.4 |
Screw speed | r.p.m | 0-200 | 0-200 | 0-200 |
Nozzle Diameter | mm | 20 | 20 | 20 |
CLAMPING | ||||
Clamp tonnage | KN | 2680 | 2680 | 2680 |
Toggle stroke | mm | 540 | 540 | 540 |
Mould Thickness | mm | 180-660 | 180-660 | 180-660 |
Space between tie-bars | mm | 580×580 | 580×580 | 580×580 |
Ejector stroke | mm | 180 | 180 | 180 |
Ejector tonnage | KN | 70 | 70 | 70 |
Ejector number | Piece | 9 | 9 | 9 |
Hole Diameter | mm | 160 | 160 | 160 |
OTHERS | ||||
Heat power | KW | 18 | 18 | 18 |
Max. pump pressure | MPa | 30 | 30 | 30 |
Pump motor power | KW | 30 | 30 | 30 |
Valve Size | mm | 16 | 16 | 16 |
Machine dimension | m | 5.8×1.5×2.2 | 5.8×1.5×2.2 | 5.8×1.5×2.2 |
Machine weight | t | 8.3 | 8.3 | 8.3 |
Why Choose Us
Energy Saving and High Efficiency with Servo System
The servo plastic injection moulding machine adopts advanced servo control technology, which can adjust the output power of the motor according to the actual production demand, avoiding the energy waste caused by the idle operation of the traditional hydraulic injection molding machine. Compared with the traditional injection molding machine, the energy saving rate can reach 35%-50%, which greatly reduces the production cost of enterprises . At the same time, the servo motor has the characteristics of fast response speed and high control precision, which can realize the rapid and accurate injection of materials, and improve the production efficiency and product quality.
Strong Versatility and Wide Application Range
The machine is not only suitable for the production of PET preforms and pipe fittings, but also can be used for the injection molding of various precision small parts such as daily necessities accessories and electronic product shells. The large space between tie-bars and the wide range of mold thickness adjustment make the machine compatible with various types of molds, meeting the production needs of different products. For enterprises that need to produce multiple varieties of products, this machine can save the cost of purchasing multiple sets of equipment.
Intelligent and Humanized Design
The machine is equipped with an intelligent computer control system, which can realize the automatic control of the entire injection molding process. The function of storing 100 sets of mold parameters can realize the rapid switching of molds, and the slope setting function can ensure the smooth operation of the equipment, reducing the defective rate of products. The multi-language operation interface is easy to understand and operate, which can reduce the training cost of operators. In addition, the automatic fault diagnosis function can quickly locate the fault reason, which is convenient for maintenance and reduces the downtime of the equipment.
After-Sales Service & Warranty
Quality Assurance Commitment
We provide a 12-month quality guarantee for the HL-2600 servo plastic injection moulding machine. During the warranty period, if the equipment has quality problems due to non-man-made factors, we will provide free replacement of spare parts and on-site maintenance services to ensure the normal operation of the equipment.
Professional Training and Technical Support
Customers can receive free professional training at our factory in China, including equipment operation, parameter debugging, mold installation and maintenance. Our technical team has rich experience in the field of injection molding machines, and can provide targeted training programs according to the actual needs of customers. In addition, we provide 24-hour online technical support. Customers can contact our after-sales service team at any time to consult technical problems, and we will provide solutions within the shortest time. If customers need on-site installation and debugging services, we can send professional technicians to the local area for on-site service.
Timely Delivery and Perfect Logistics Service
The delivery time of the equipment is 60 days after the advance payment is received. We have established a perfect logistics cooperation system, which can choose the most suitable transportation mode according to the customer's location and needs, and ensure that the equipment is transported to the destination safely and on time. During the transportation process, we will carry out strict packaging of the equipment to avoid damage to the equipment.
Call to Action
Are you engaged in the production of precision plastic parts and looking for an energy-saving, efficient and versatile servo plastic injection moulding machine? The HL-2600 servo injection molding machine of Huili Machinery is your ideal choice! With advanced servo control technology, strong versatility and perfect after-sales service, we can provide you with a comprehensive solution for plastic injection molding production. Whether you are producing PET preforms, pipe fittings or other precision small parts, our equipment can meet your needs. Contact us immediately to get the detailed product catalogue and preferential quotation, and let us work together to create a better future for your enterprise!
FAQ
What is the main difference between this servo injection molding machine and traditional ones?
It adopts an advanced servo motor drive system, which can realize precise control of injection speed, pressure and position, and achieve an energy saving rate of 35%-50%.
What products is the machine suitable for producing?
It is especially suitable for manufacturing various precision small plastic parts such as PET preforms, pipe fittings and daily necessities accessories.
How does the machine ensure production stability?
It has automatic movement monitoring, alarm and fault diagnosis functions, and a unique slope setting function to ensure smooth operation and reduce product defect rate.
