Product Category
Huili Machinery’s Plastic Preform & Cap Injection Molding Machine is a specialized equipment designed for manufacturing plastic preforms and caps. We provide a wide range of models with clamping force ranging from 98ton to 1500ton, covering diverse production demands of small-scale to large-scale enterprises.
Core Highlights of Fruit Plastic Crate Injection Molding Machine
Advanced Technology & Premium Components
This HL-2600 injection molding machine adopts leading European technology and world-famous spare parts. It is equipped with an imported advanced computer system, supporting multi-language interfaces including Chinese, English, Russian, Spanish, French and Arabic. The system can save up to 100 sets of mould parameters, which greatly improves the efficiency of switching between different fruit crate production tasks.
Flexible Operation & Intelligent Monitoring
The machine supports manual, semi-automatic and fully automatic operation modes, meeting the diverse needs of small-batch trial production and large-batch mass production. It has an automatic movement monitoring function with alarm and fault diagnosis, which can timely detect abnormal operation and reduce production losses. The unique slope setting function can set the start and stop of movements, ensuring the smooth operation of each production link and improving the qualified rate of fruit plastic crates.

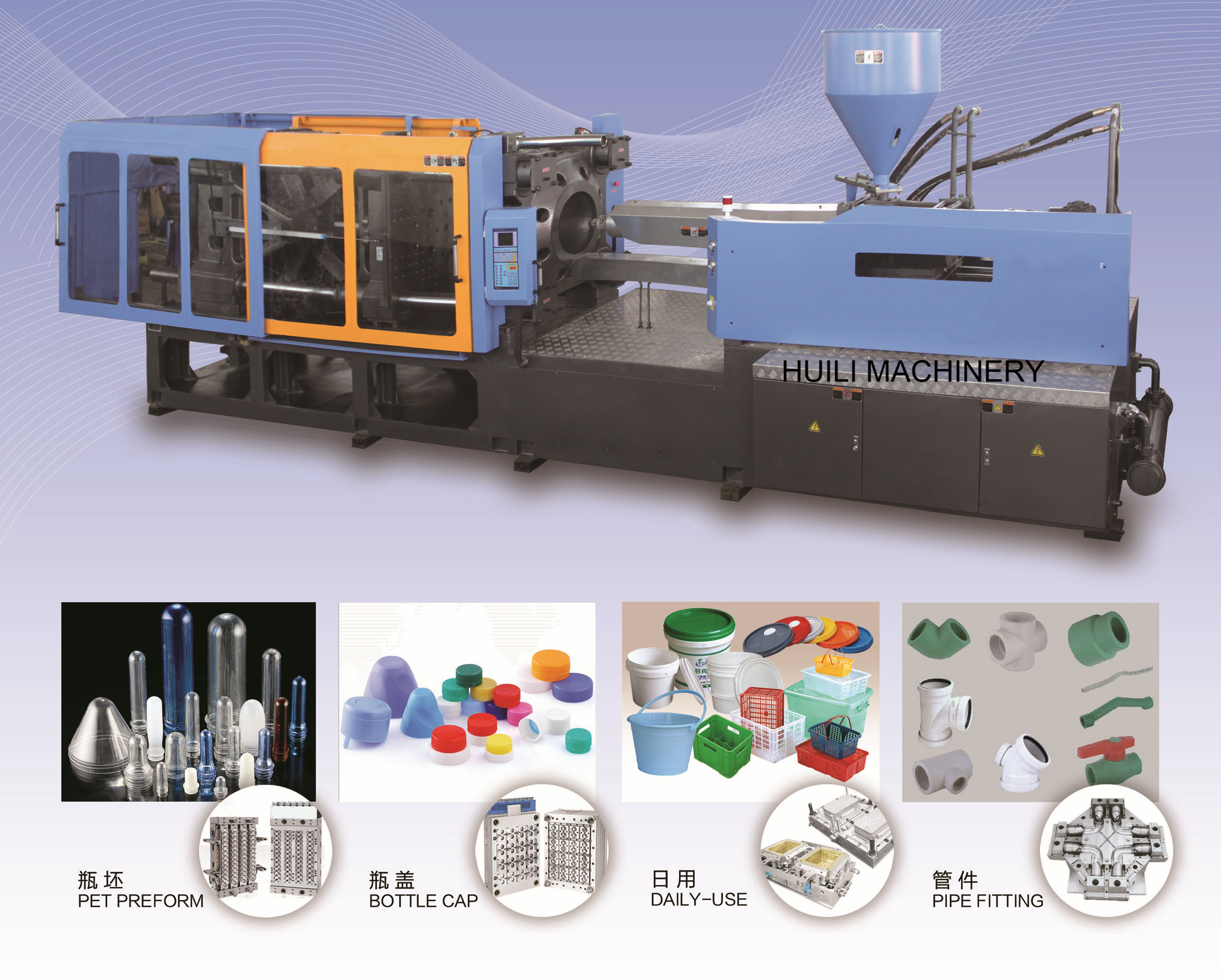

Product Overview of HL-2600 Injection Molding Machine
As a professional plastic products making machine, the HL-2600 fruit plastic crate injection molding machine is specially designed for producing various precision plastic products, especially suitable for manufacturing different types of fruit plastic crates with high quality requirements. Its advanced clamping structure and injection parts, combined with precision hydraulic system and circuit design, ensure the accuracy and consistency of product size.
The machine is easy to operate and maintain, and operators can get started quickly after simple training. Whether it is thin-walled fruit crates for transportation or thickened fruit crates for storage, this equipment can achieve stable production. It not only meets the production needs of fruit packaging and transportation industry, but also can be extended to produce other precision small plastic parts, with strong versatility.
Technical Specifications of HL-1650A Injection Unit
Parameter | Unit | A Type | B Type |
Screw Diameter | mm | 42 | 45 |
Shot Size (Theoretical) | cm³ | 318 | 362 |
Shot Weight | g | 286 | 326 |
Injection Pressure | MPa | 174 | 151 |
Injection Rate | g/s | 135 | 155 |
Screw L/D Ratio | L/D | 22.3 | 20.4 |
Screw Speed | r.p.m | 0-190 | 0-190 |
Nozzle Diameter | mm | 10 | 10 |
Clamp Tonnage | KN | 1650 | 1650 |
Toggle Stroke | mm | 405 | 405 |
Mould Thickness | mm | 170-440 | 170-440 |
Space Between Tie-bars | mm | 455×425 | 455×425 |
Ejector Stroke | mm | 155 | 155 |
Ejector Tonnage | KN | 70 | 70 |
Ejector Number | Piece | 5 | 5 |
Hole Diameter | mm | 125 | 125 |
Heat Power | KW | 8.2 | 8.2 |
Max. Pump Pressure | MPa | 16 | 16 |
Pump Motor Power | KW | 15 | 15 |
Valve Size | mm | 16 | 16 |
Machine Dimension | m | 5.0×1.6×1.7 | 5.0×1.6×1.7 |
Machine Weight | T | 5 | 5 |
Oil Tank Capacity | L | 250 | 250 |
Why Choose Us for Fruit Plastic Crate Molding Equipment
European Technology Leadership: The core technology of the machine comes from Europe, ensuring the stability and precision of production. The use of world-famous spare parts reduces the failure rate of the equipment during long-term operation.
High Cost-Effectiveness: The machine has high production efficiency and low energy consumption. Its easy operation and maintenance features reduce the later operation and maintenance costs of enterprises.
Strong Versatility: In addition to producing fruit plastic crates, it can also produce various precision small plastic parts, helping enterprises expand their product lines and increase profit channels.
After-Sales Service & Warranty of Fruit Crate Injection Molding Machine
Quality Warranty: We provide a 12-month quality guarantee for the machine. During the warranty period, we will replace the spare parts for free (excluding man-made sabotage).
Free Training & Maintenance: We offer free advanced training and maintenance services in our China factory. Operators can master the operation, maintenance and troubleshooting skills of the machine.
24-Hour Online Service: We provide 24-hour online or phone service. If customers need, we can also send professional technicians to provide on-site installation and training services abroad until customers are satisfied.
Delivery Time: The delivery time of the machine is 60 days after the advance payment is received.
Call to Action
Are you looking for a high-quality and efficient injection molding machine for producing fruit plastic crates? The HL-2600 fruit plastic crate injection molding machine is your best choice! Please tell us your specific needs, such as the weight of the fruit crate, the required hourly output, and the raw material type. We will provide you with a customized production solution and a preferential quotation. Contact us now and start your high-efficiency production journey!
FAQ
Can the machine produce different types of fruit crates?
Yes. It can produce various types of fruit plastic crates, including thin-walled ones for transportation and thickened ones for storage.
How many operation modes does the machine have?
It supports manual, semi-automatic and fully automatic operation modes, meeting the needs of small-batch trial production and large-batch mass production.
How does the machine ensure product accuracy?
Its advanced clamping structure, injection parts, precision hydraulic system and circuit design ensure the accuracy and consistency of product size.
