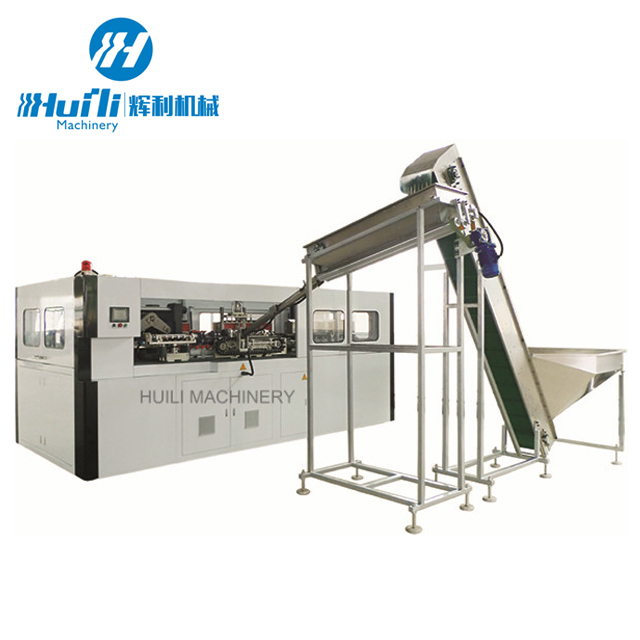

Operation specification of bottle blowing machine

Necessary knowledge for safe operation of automatic bottle blowing machine

(1) Lubricating oil must be added to each moving part before starting each shift. (manipulator, manipulator guide rail, mold opening and closing guide rail)

(2) Arm swing can be added once every (3-4) days. The large chain and small chain of the heating machine can be used once a month. Frequently check whether the reducer of the main engine and the reducer of the heating machine are short of oil. Main engine bearings can be added once every 3 months.

(3) Before production, check whether the moving parts are firm, whether the screws are loose and fall off, especially where the impact force is strong, and whether the belt transmission part is abnormal.

(4) Check whether the high-pressure air source, low-pressure air source, power supply, and water source are normal.

(5) Check whether the emergency stop switches, safety door switches, and protection device detection switches are normal.

(6) Check whether the heating head enters the embryo and the embryo dropping part works normally. If the embryo insertion is not in place, the nut of the embryo pressing device can be adjusted.

(7) Check whether the lamp tube is damaged or broken. To be replaced in time.

(8) Check whether the pneumatic components are leaking and whether the action is sensitive.

(9) Check whether the triplet is abnormally leaking, whether it is blocked, and whether the water storage capacity of the water cup is too full.

(10) When the solenoid valve of the automatic bottle blowing machine is abnormal, it should be cleaned in time (cleaning once every 3.5 million blow bottles).
